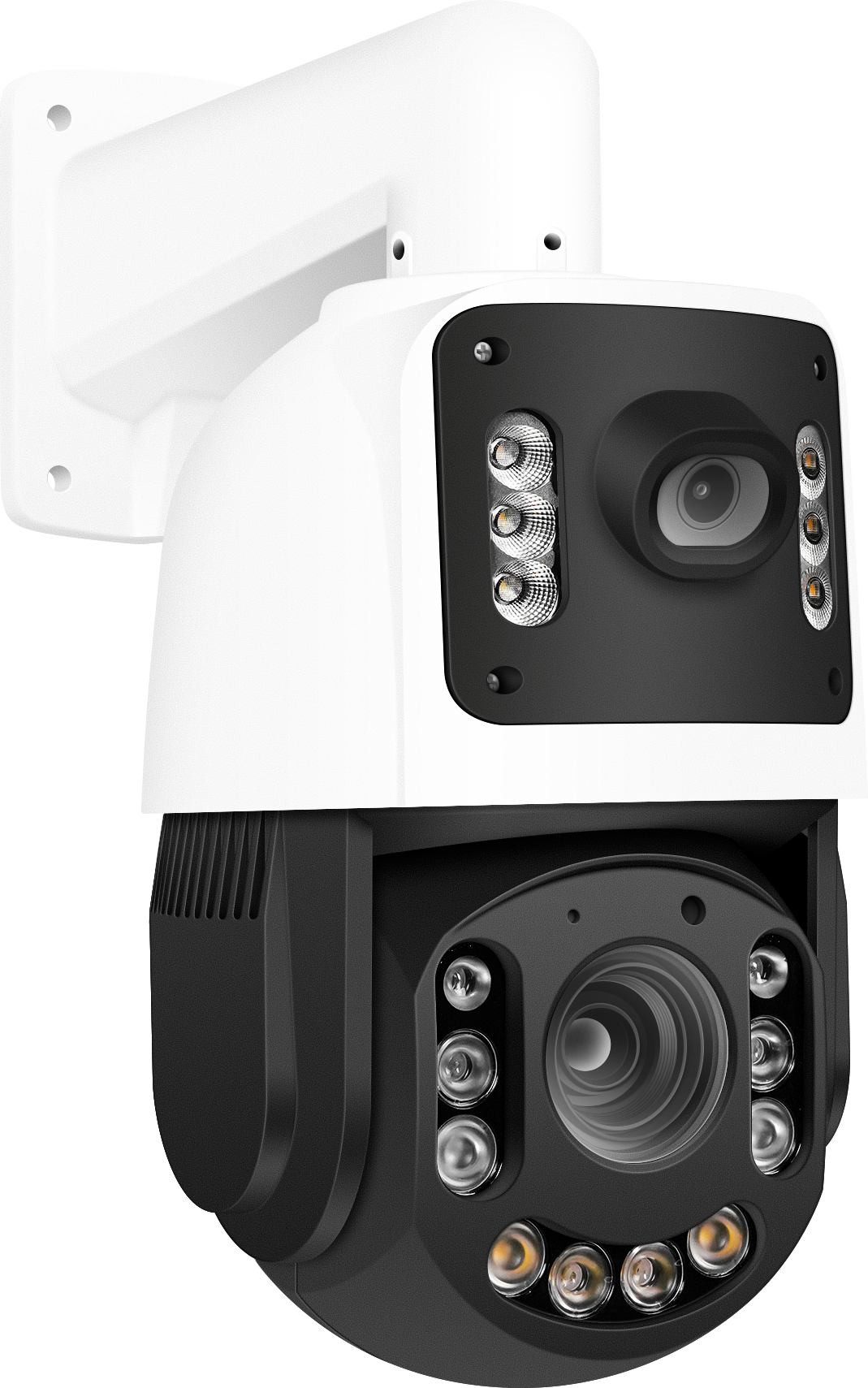

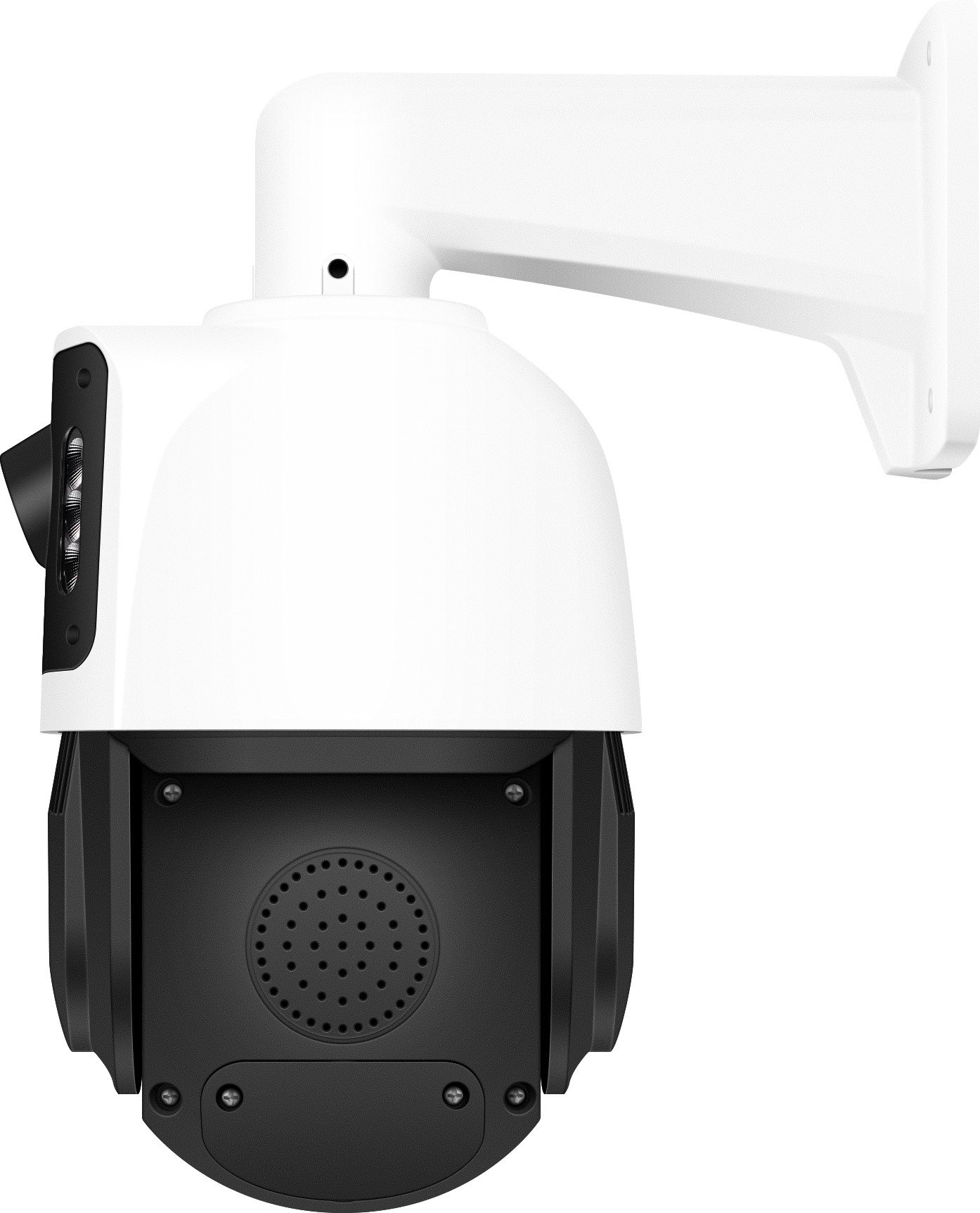

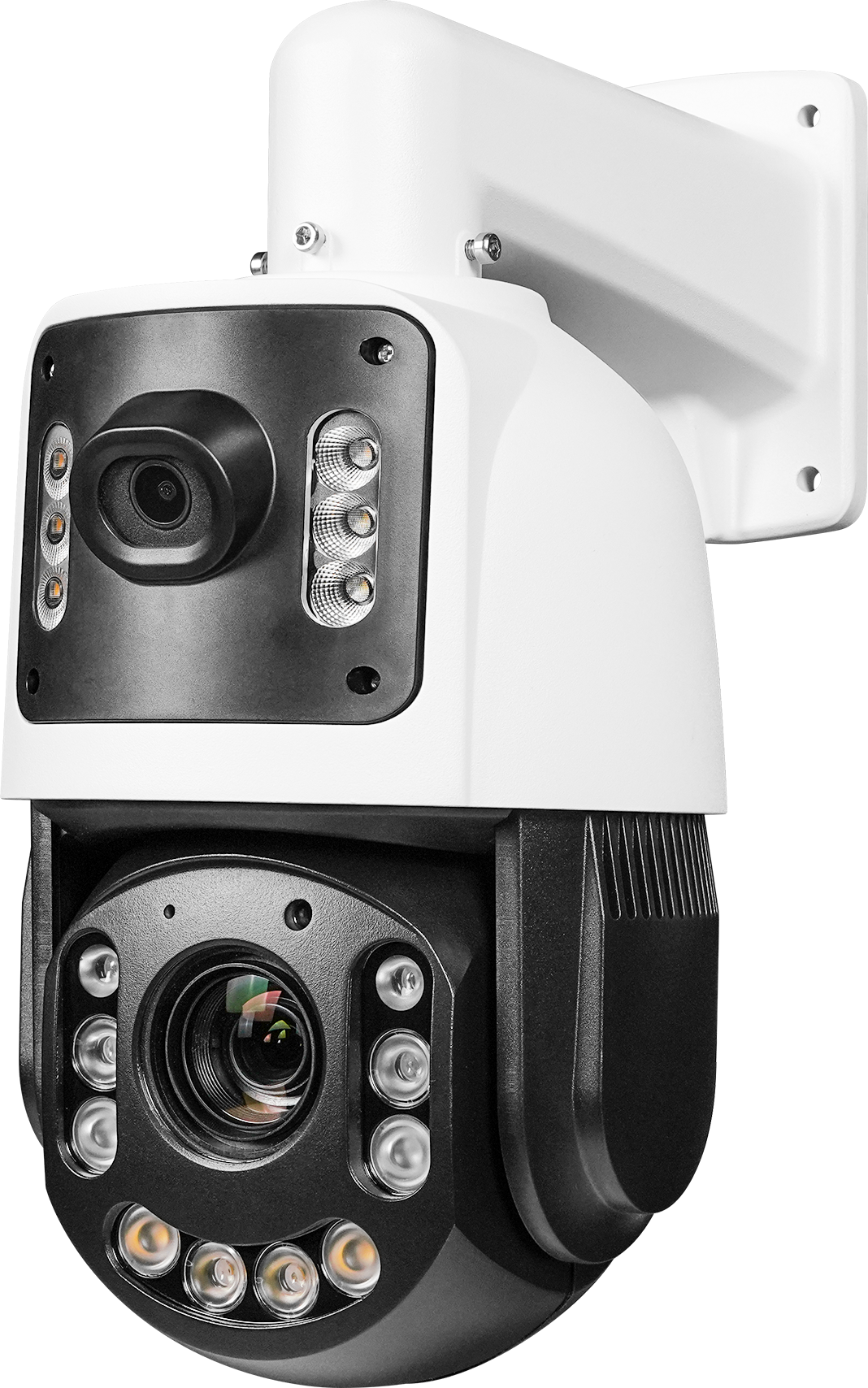

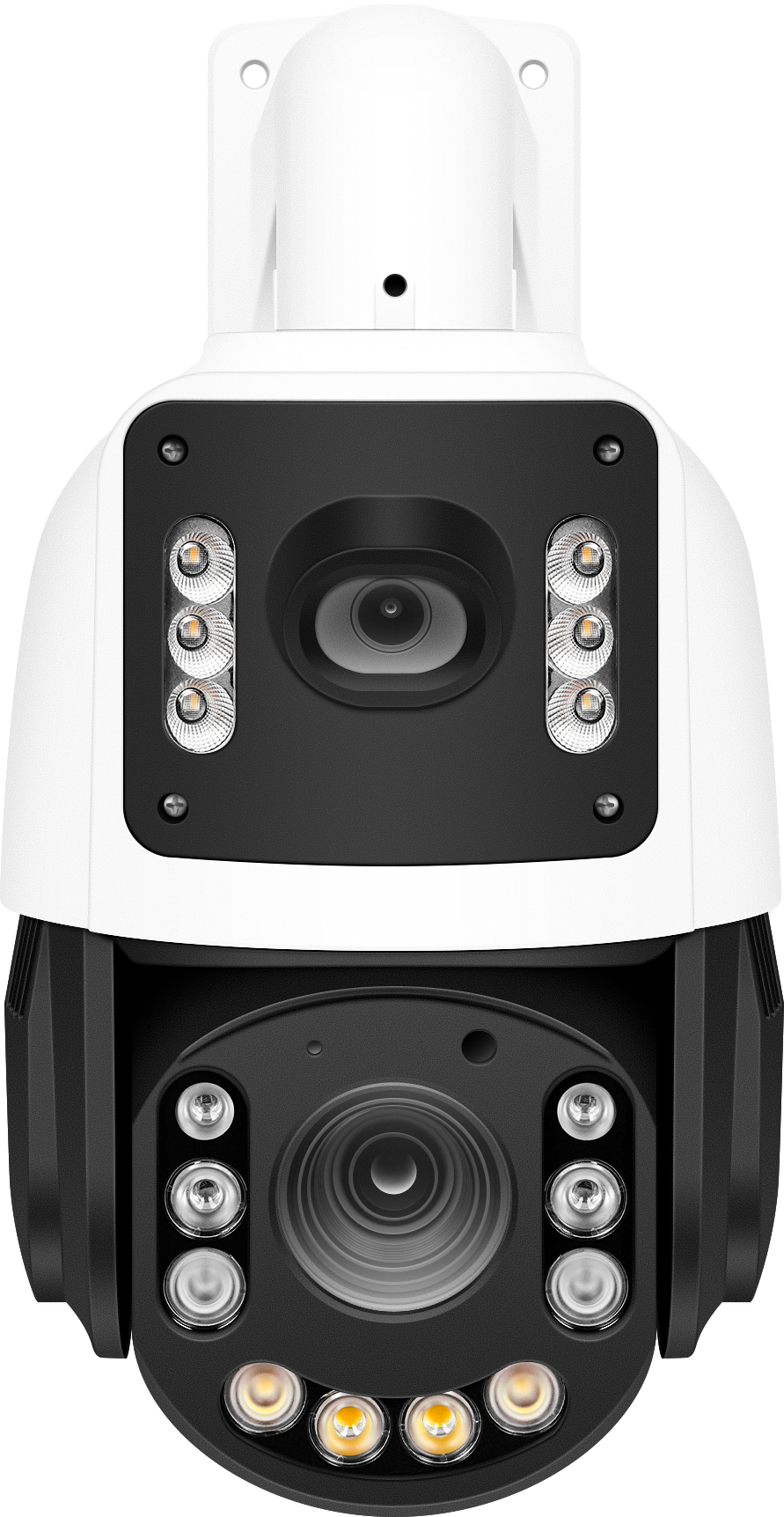

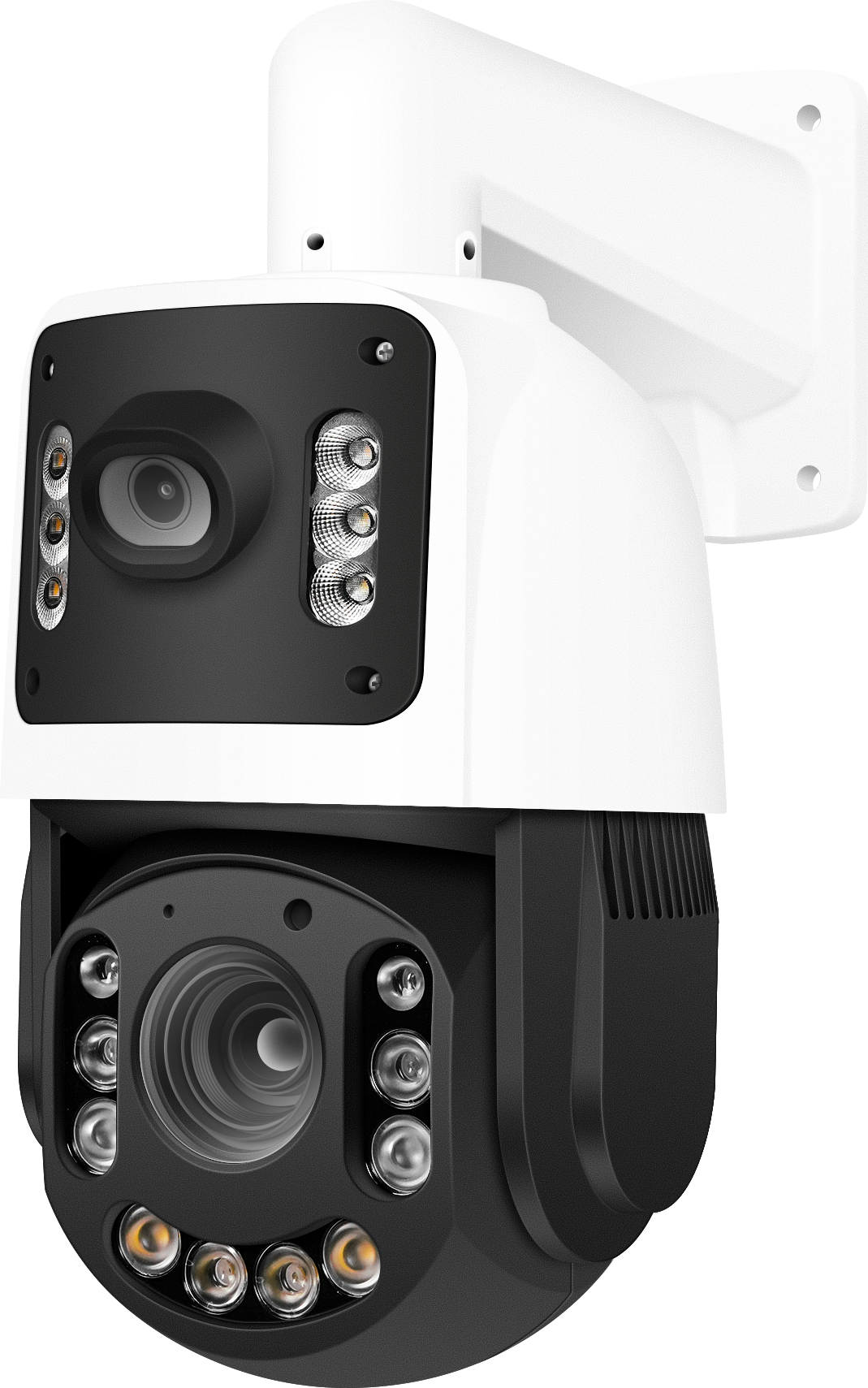

4MP Human Tracking Dual Lens Dual Light IP PTZ Camera (5-inch)

1/2.9" CMOS sensor *2

4MP resolution 1920x1080 * 2

Fixed focus lens (wide-angle) and zoom lens (tracking)

Low illumination 0.01Lux

20x optical zoom

Smart Human Detection Alarm

Smart Human Tracking

Built-in Mic and speaker, two-way audio

Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT

DWDR, Flip

Multiply Style OSD Overlay, Motion Detection, Privacy Mask

RTSP and Onvif 17.06 compatible with many third-party NVR

H.264/H.265 dual-stream media server

Easy-to-use P2P Cloud service

Support user authentication, video data encryption

Support Alarm Snapshot to Email and FTP

Multiply WEB browser IE,Firefox,Chrome,Edge,Safari

Free PC Client, Mobile APP remote access

RJ45 100mbps network port, IEEE802.3af 48v PoE

Lightning protection 4000V

Strong metal water-proof housing, IP66

16 pcs Array Led(6 dual-light Led + 6 IR led +4 white light)

IR distance 80-100 meters

Download PDF

Tech Specs

Details

Video

FAQ

Model	W814IRC_M5
Camera
Image Sensor	1/2.9" CMOS*2
Effective Pixels	4 megapixels
Electronic Shutter	AUTO, 1/10s ~ 1/10000s
Min. Illumination	0.01Lux@F1.2(AGC ON)
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto/Manual
BLC /HLC	Support
DNR	2D/3D DNR
Other	Image adjust , Flip
Encode
Video Standard	H.265+/H.265/H.264
Video Resolution	MainStream:20fps@2MP(1920x1080)/720P,etc.
Video Resolution	Sub stream: 640x360,etc.
Video Bitrates	128kbps – 1.5Mbps, VBR/CBR
Audio Standard	G.711U/G.711A/AAC
Two-way audio	Built-in Mic and speaker
Smart Detection	Motion Detection
Smart Detection	Human Detection
IR Led
IR Led	up:6 dual light led
IR Led	down: 6 infrared light led and 4 white light led
IR Distance	80-100 M
Lens
Focal length	Fixed: 2.8mm
Focal length	Zoom: 4.7-94mm
IRIS	F1.6-3.5
View angle	64 °- 2.9 °
Zoom	20x optical zoom
Other Function
High power PoE+, SD Slot, Reset button
PTZ
Pan/Tilt Range	Pan: 0° ~ 350°; Tilt: -5° ~ 90°
Preset Point	32
Control Speed	Pan: 35° /s; Tilt: 13° /s
A-B Scanning	Support
Auto Cruising	Support 2 groups patrol, Max. 16 presets in group
Power on Action	Preset/Scan/Cruise
Power-off Recovery	Support
Smart Tracking	Human Detection Tracking together with patrol
Network Services
Protocol	HTTP/HTTPS/RTSP/FTP/SMTP/DHCP/NTP, etc.
P2P	Yes
Web	IE, Firefox, Chrome, Edge, Safari
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps, PoE+ 48V in
Power Supply	12 VDC ± 10% 2A
Power Consumption	< 20 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
Size	5-inch
Weight	Approximately 1.5kg

1. Can you provide OEM/ODM Service?

Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
2. How about warranty?

All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
3. How long is the delivery time?

Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
4. What's the MOQ?

No MOQ required for sample order, at least one carton per model after sample order.
5. What's your main products?

YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
6. Are you a factory or trading company?

YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 14 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.

How does Network
IP Camera Work?

IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.

Features of ColorVu IP camera

Support multi-channel real-time face image comparison face matching deployment control and calibration linkage.
Deep Ai H.265 Smart ip camera with NVR can plug and play and checked by remote CMS and mobile app.
AI CMS can unified manage Multiple intelligent NVRs and remotely realtime view the people face.
