Home Products 4 In 1 Analog Camera Color View Analog Camera 8MP/5MP/2MP AOC Colorview

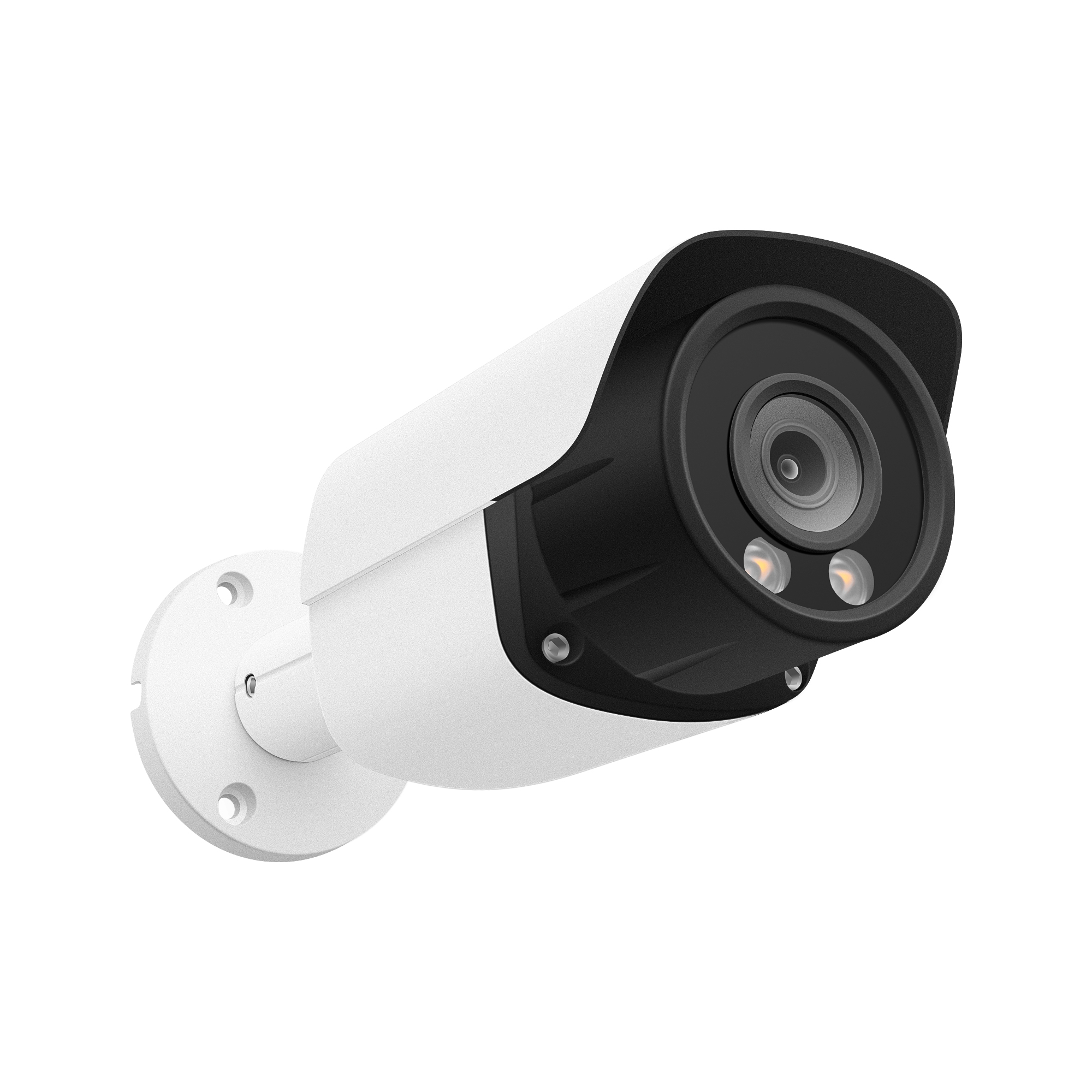

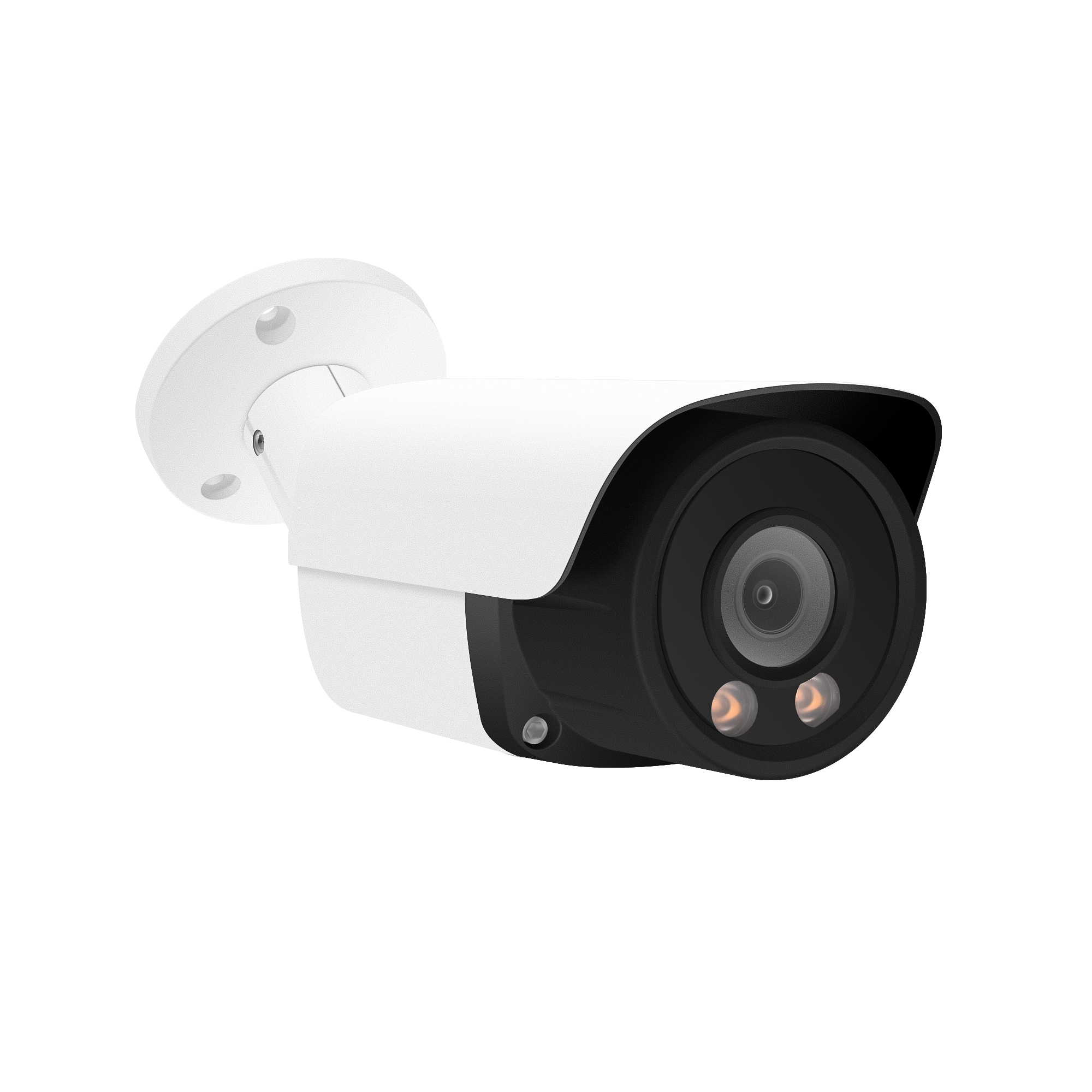

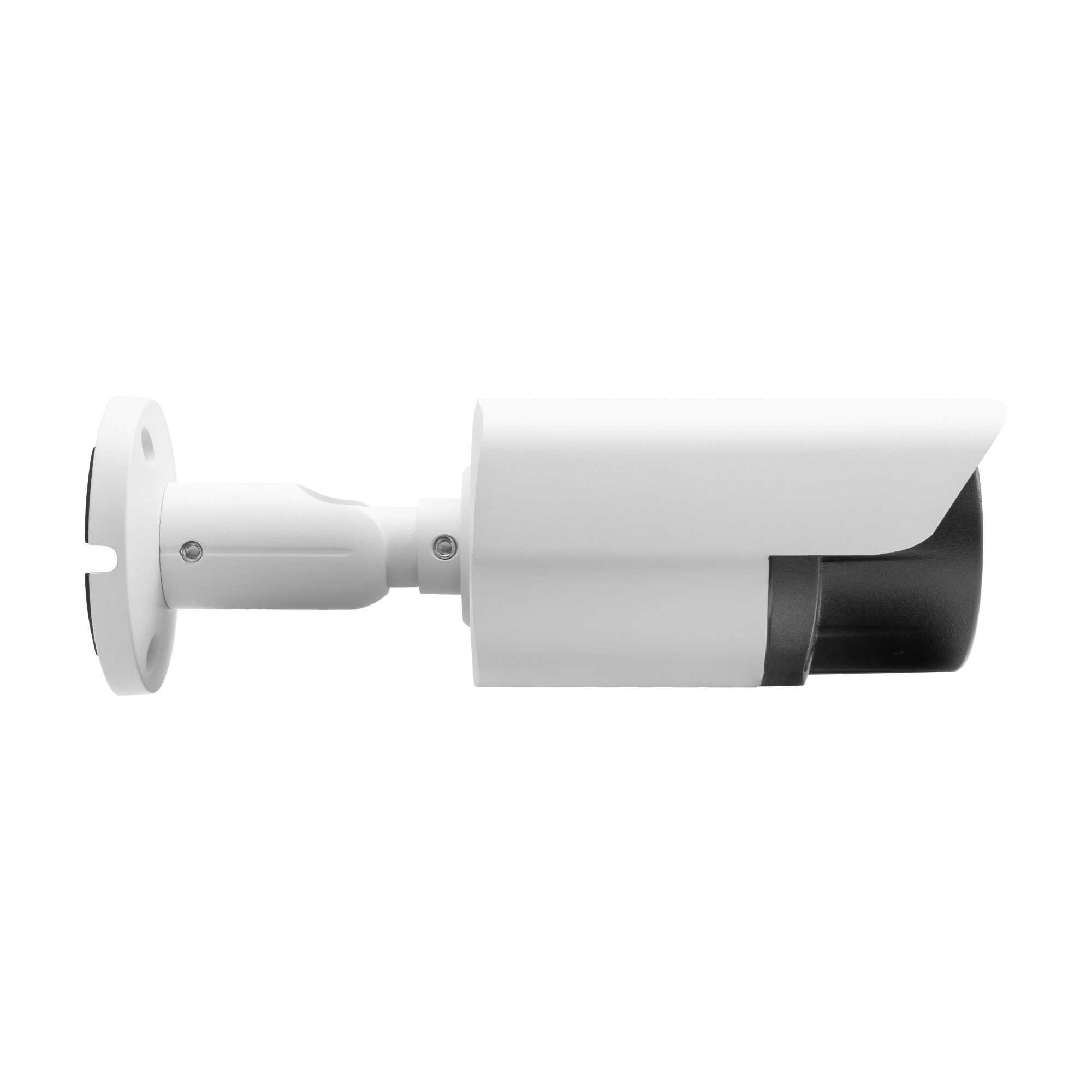

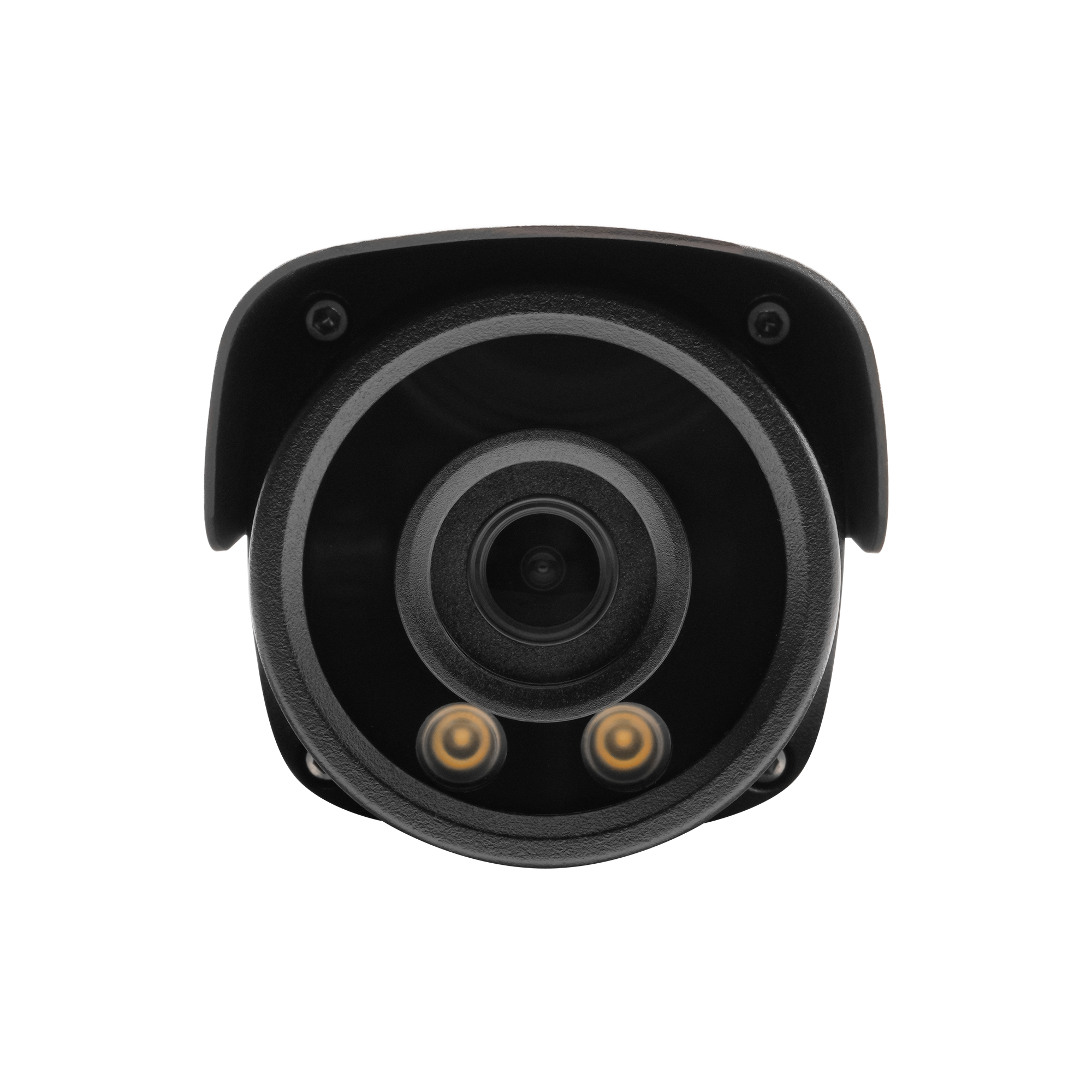

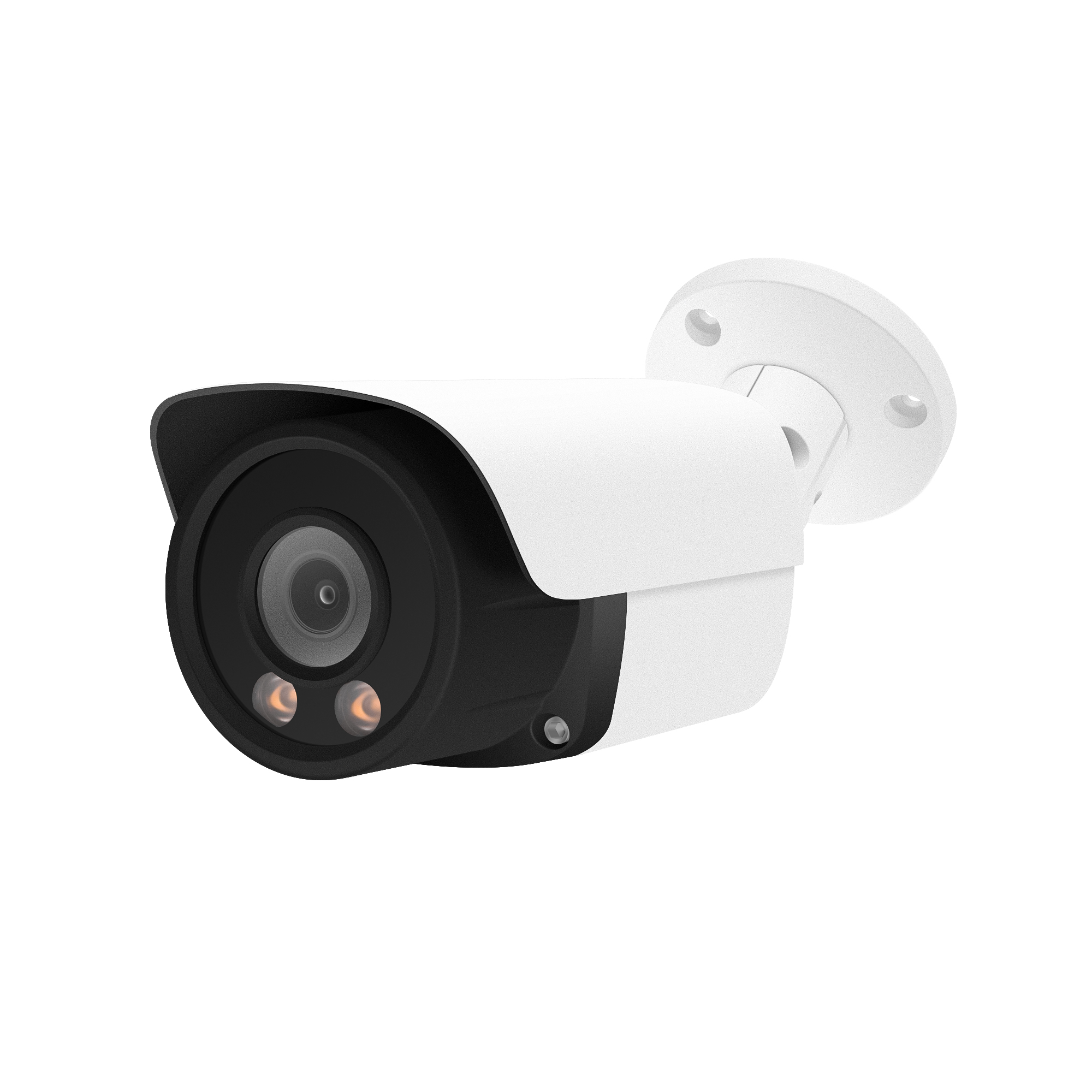

4K 8MP Starlight Fixed Lens Full Color AOC 4in1 Mini Analog Bullet Camera

4-in-1 HDCVI / HDTVI/AHD / CVBS optional output

4K resolution 3840 x 2160

Ultra low illumination 0.01Lux

Up to 300M long distance and high speed real time monitoring

OSD menu control up the coaxial cable (UTC)

Day/Night (ICR), AWB, AGC, DNR, D-WDR, Flip

Lightning protection

Strong water-proof housing, IP66

2PCS Soft & Warm Supplemental Light, distance 25-30 meters

F1.6 3.6mm fixed lens

Download PDF

Tech Specs

Details

Video

FAQ

Model	YC-T828CZ37EA
Camera
Image Sensor	1/2.8" 8 Mega pixels CMOS
Chipset	Sony IMX415+TP3818
Effective Pixels	3840(H)×2160 (V)
Video Resolution	4K@12.5/15fps (PAL/NTSC)
Electronic Shutter	AUTO, 1/25 - 1/10,000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Video System	PAL/NTSC
Video Output	1 channel, HDCVI / HDTVI/AHD/CVBS , adjustable

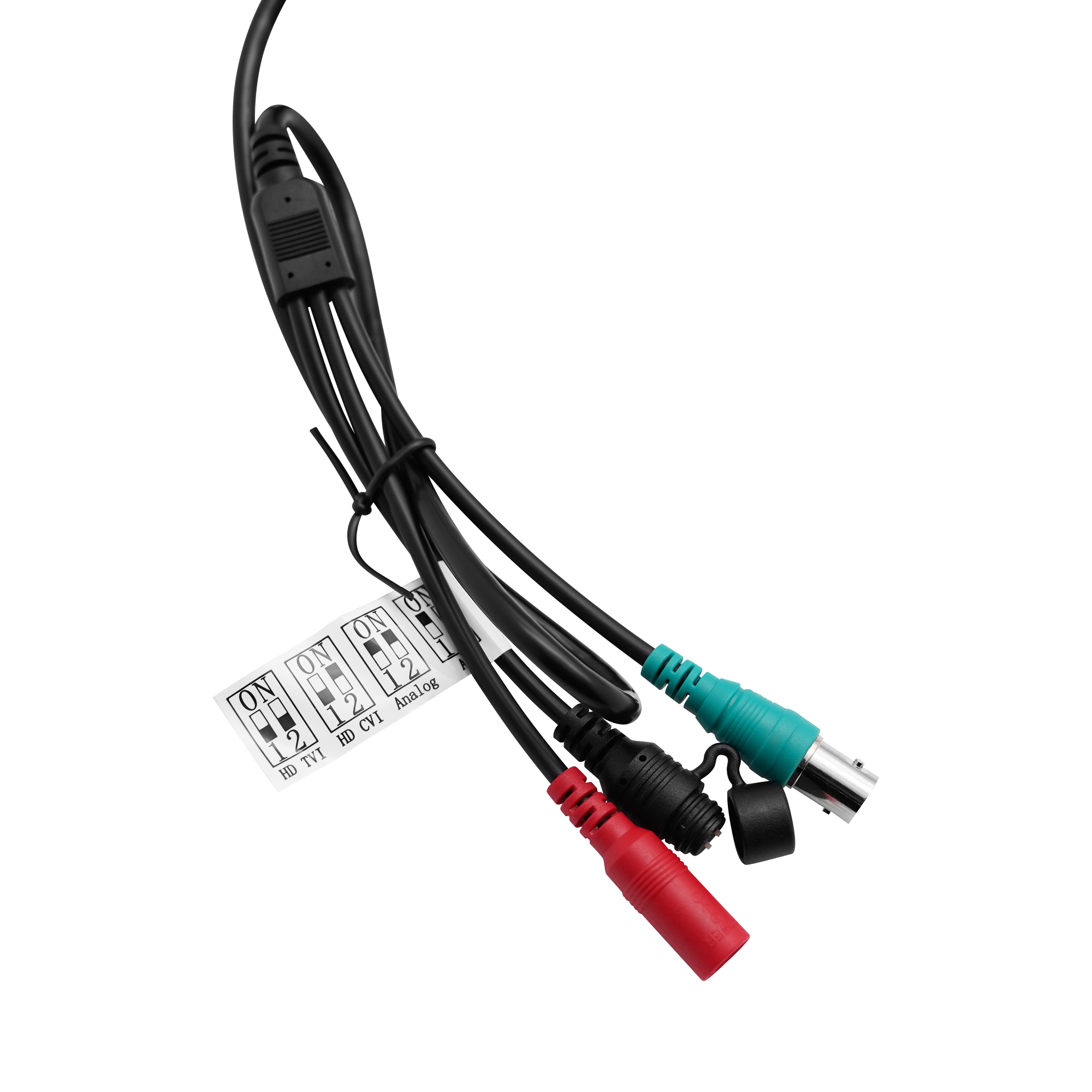

Video Switch	DIP switch
Mic	Yes (TVI Mode available)
Day/Night	Auto/Color/(B/W)/EXT
WDR	Digital WDR
White Balance	ATW/Manual
AGC/BLC	Support
DNR	2D NR
OSD Menu	Multiple languages OSD menu control up the coaxial cable (UTC)
Led
Led	2PCS Soft & Warm Supplemental Light
Distance	25-30 M
Lens
Focal length	F1.6 3.6mm fixed lens
General
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-20℃-(+60)℃, 10%-90%RH

4K Human Tracking and Vehicle Detection IR IP PTZ camera

Human Detection, Vehicle Detection Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring

1. Can you provide OEM/ODM Service?

Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
2. How about warranty?

All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
3. How long is the delivery time?

Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
4. What's the MOQ?

No MOQ required for sample order, at least one carton per model after sample order.
5. What's your main products?

YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
6. Are you a factory or trading company?

YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 14 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.

How does Network
IP Camera Work?

IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.

Features of ColorVu IP camera

Support multi-channel real-time face image comparison face matching deployment control and calibration linkage.
Deep Ai H.265 Smart ip camera with NVR can plug and play and checked by remote CMS and mobile app.
AI CMS can unified manage Multiple intelligent NVRs and remotely realtime view the people face.
