Home Products Network IP Camera N Series IP Camera Prime 6MP IPC (SSC377D+IMX335)

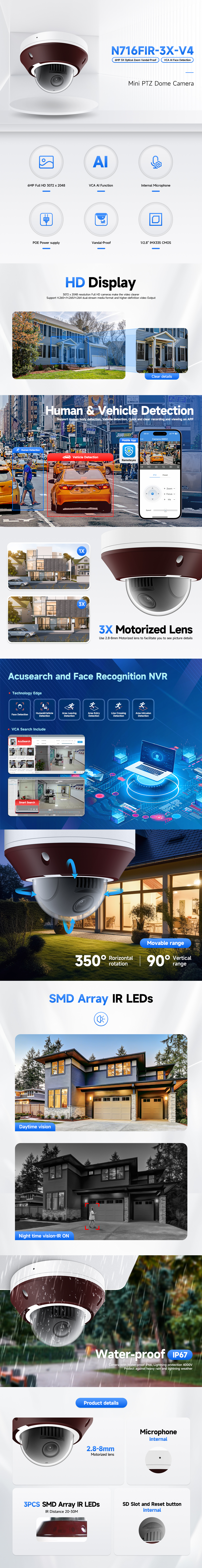

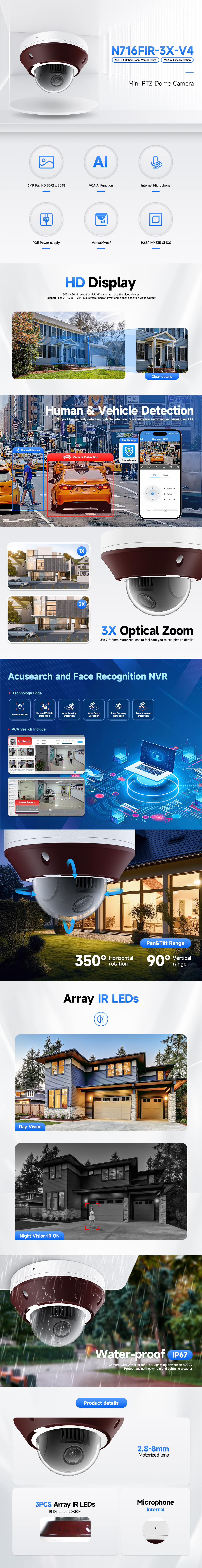

6MP VCA AI Smart 3X Optical Zoom Vandaproof Mini PTZ Dome Camera

1/2.8" CMOS Sensor

6MP HD Resolution Output

Face Detection,Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection

Low illumination 0.01Lux

Day/ Night (ICR), AWR, 2D/3D-DNR, IR-CUT

WDR, Motion Detection, Privacy Mask, Flip

RTSP and Onvif 23.12 Compatible

H.265/ H.264 Dual-stream Media Server

Easy-to-use P2P Cloud Service

Multi web browser, PC Client, Mobile APP, Remote access

RJ45 100mbps Network Port, IEEE802.3af PoE

Lightning Protection 4000V

Strong Water-proof Housing, IP67

3PCS SMD Array IR LEDs, IR Distance 20-30M

2.8-8mm Motorized Zoom AF Lens

350° horizontal rotation, 90° vertical range

Internal Microphone / Reset button

Download PDF

Tech Specs

Details

Video

Model	YC-N716FIR-3X-V4
Camera
Image Sensor	1/2.8" Sony IMX335 CMOS
Soc Chip	Sigmastar SSC377D
Effective Pixels	3072(H)×2048 (V)
Exposure Shutter	AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable
Day/Night	Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity
Image Adjust	Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White Balance	AWB/MWB
WDR	100db WDR
DNR	2D/3D DNR
Encode
Video Standard	H.264/H.265/MJPEG
Video Resolution	Main Stream:
	25fps@6MP(3072x2048),30fps@5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
	Sub stream: 10fps@720P,30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360)
Video Bitrates	Sub stream: 64kbps-8Mbps
	Sub stream: 64kbps-2048kbps
	VBR/CBR , quality(1-9), GOP(1-128)
Image Rotation	0 / 90 / 180 / 270 degree adjustable
Border Crop	X crop, Y crop
Image Mirror	horizon / vertical / horizon&vertical adjustable
OSD Overlay	Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask	4 areas
Region of Interest	ROI: Each stream support 8 areas
Audio Standard	G.711-u/G.711-a/AAC/PCM, AEC
Built-in Mic	Yes
Led
Light	3pcs SMD Array IR LEDs
IR Distance	20-30M
PTZ
Pan/Tilt Range	Pan: 0° ~ 350°; Tilt: 5° ~ 90°
Manual Control Speed	80°/Sec
Lens
Zoom	3X Optical Zoom
Focal length	2.8-8 mm AF Motorized AF Lens
Language
English, simplified Chinese, Chinese Traditional, Korean, etc.
Smart Detection
Motion Detection	Yes
Digital IO Alarm	1 pair Alarm-in/Alarm-out, normally open/normally close
Human Vehicle Detection	support
Cross Line Detection	support
Perimeter protection	support
Face Detection	support
Target Detection Type	Human Shape, vehicle, non-motor vehicle, Pet, Face (32px-800px)
Trigger Action Linkage	Snapshot, Record, Relay, Email, FTP, NAS storage (optional)
Simultaneous Detection	Maximum 16 targets simultaneous detection
Storage Type	Schedule/Trigger:Email, FTP, NAS
Network Services
Protocol	HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS
P2P Mobile APP	Android, IOS
Web Access	IE, Firefox, Chrome, Edge, Safari, etc.
PC Tool	Windows, Mac
ONVIF	23.12 compatible (profile S G T M)
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

How does Network
IP Camera Work?

IP Camera connect directly to the network,with H.265 compressed technology to save the space and bandwidth. It can be remotely viewing in realtime and back up with high quality high definition 4K,5MP,2MP image or video with audio via any PC,Recorder and mobile app to secure people and world safe.
