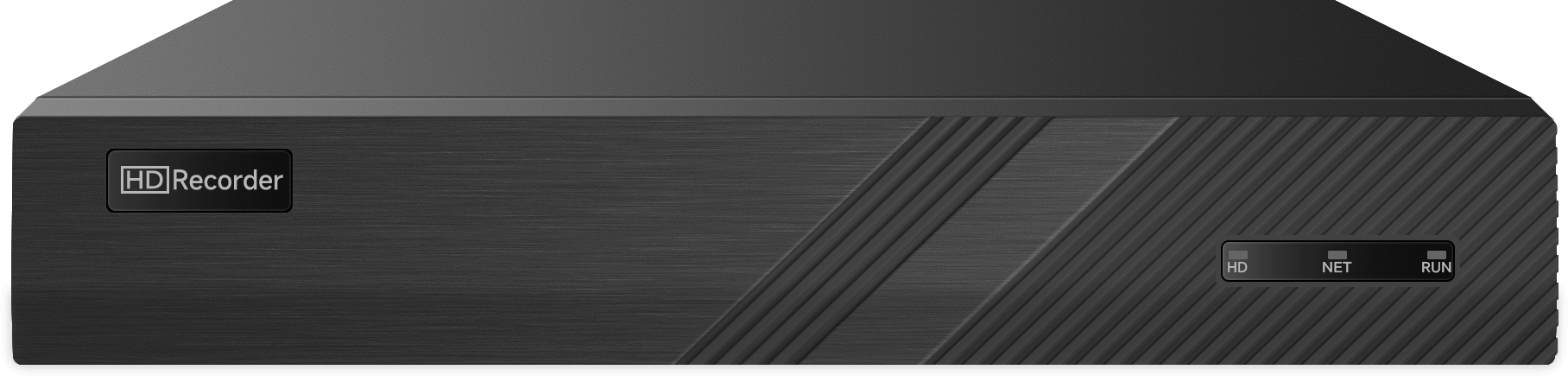

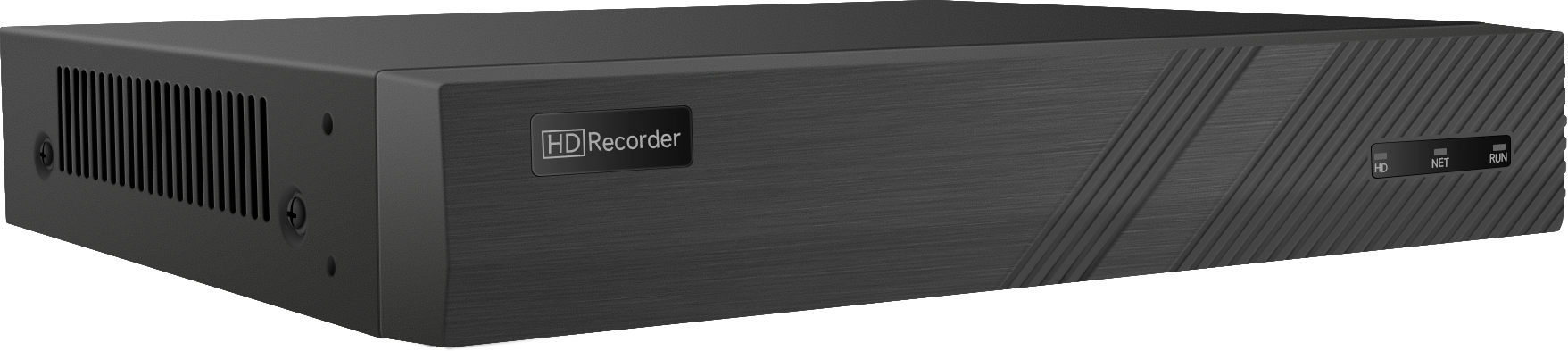

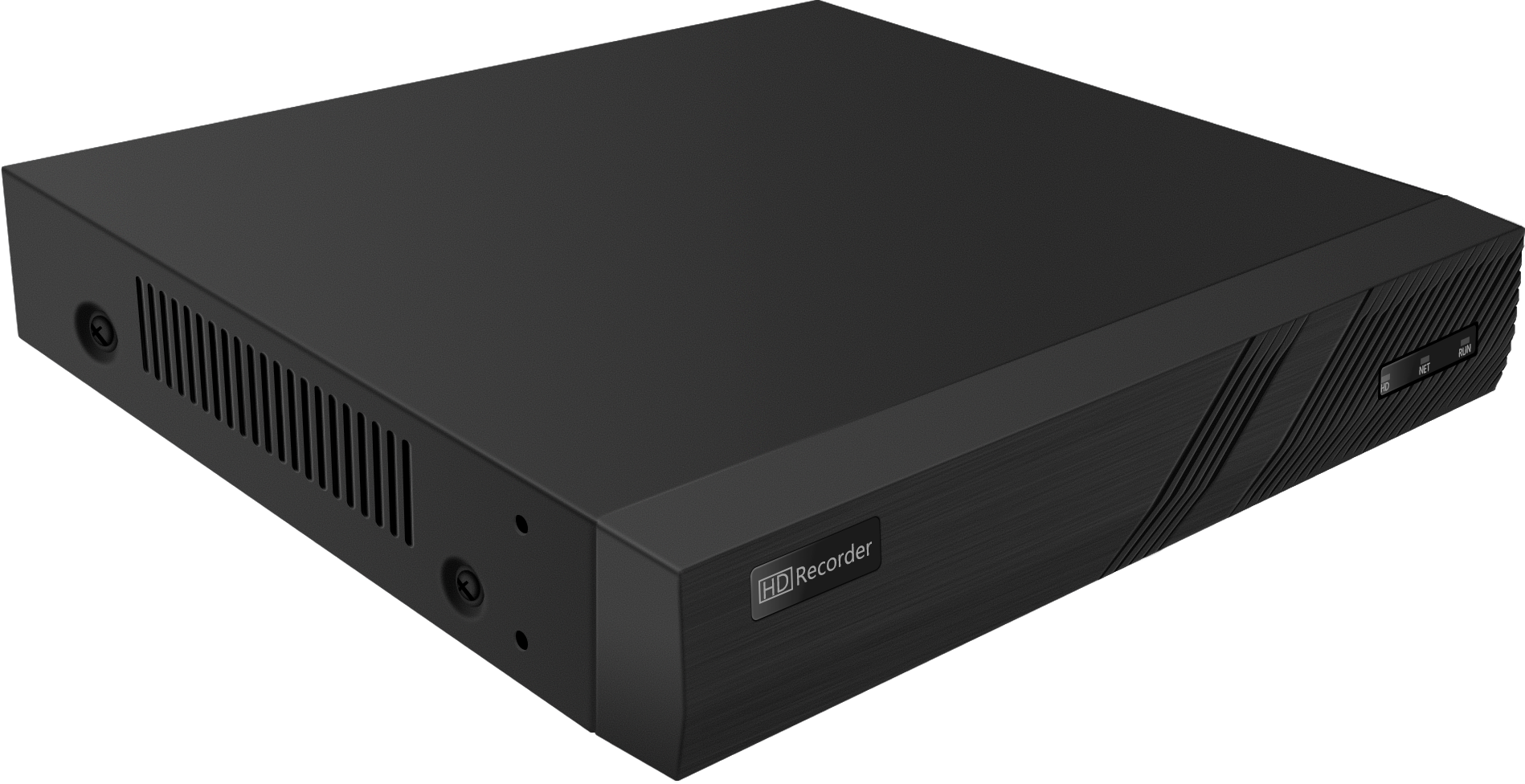

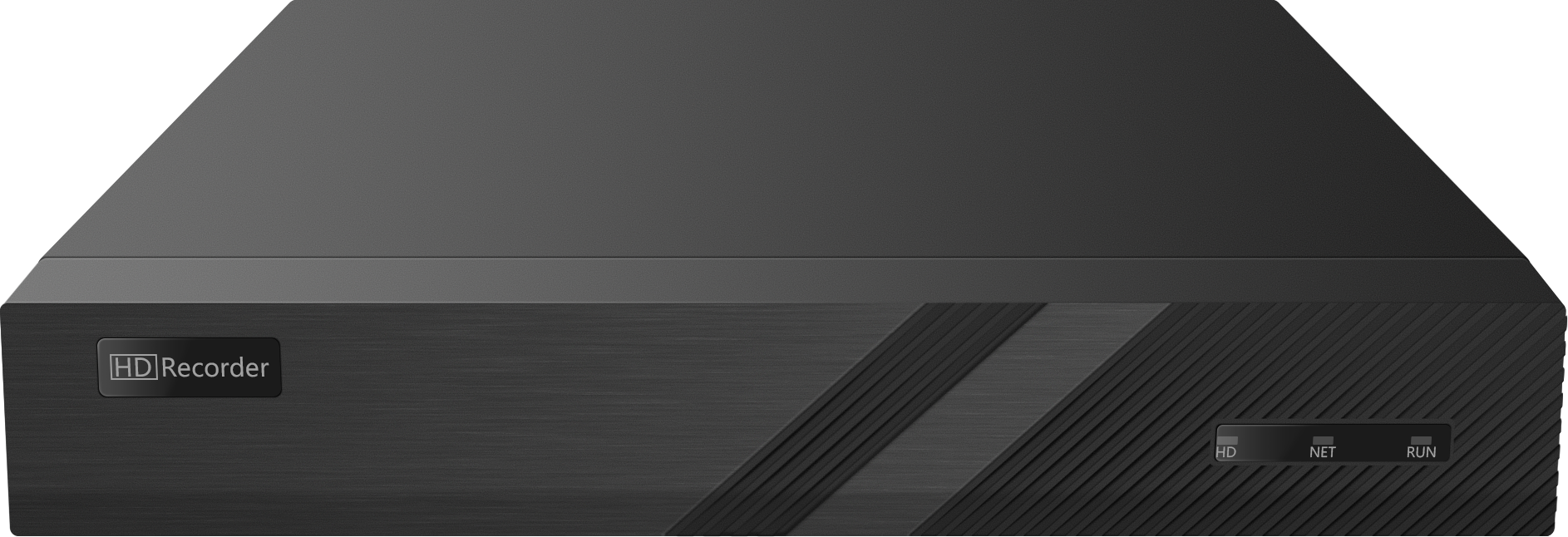

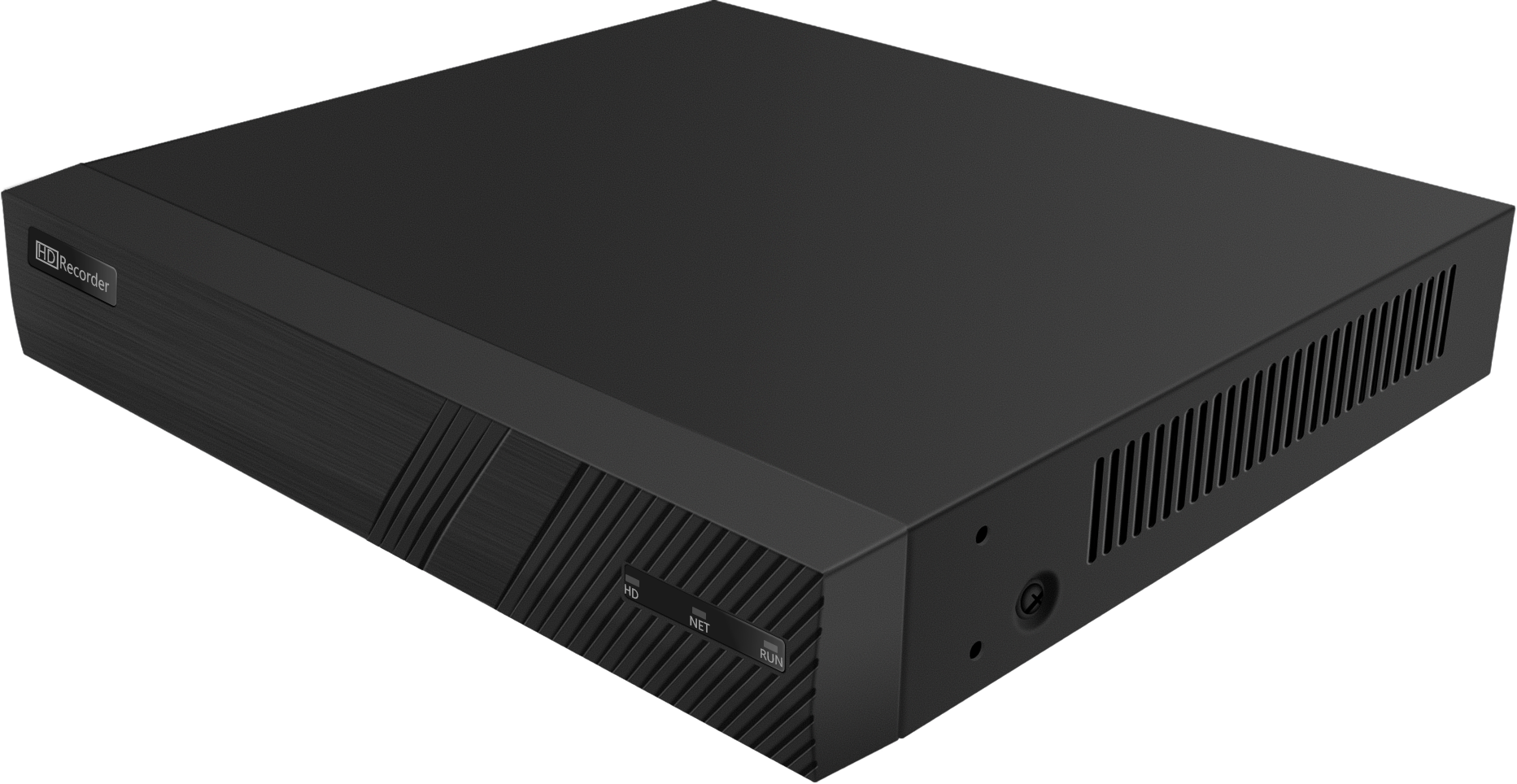

12MP 8CH 1SATA PoE NVR With Deep Search Face Detection Face Comparison People Counting Report Non-PoE Network Video Recorder

Support Ultra 265/H.265/H.264 video formats

8-channel input

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support HDMI and VGA simultaneous output

Up to 12 Megapixels resolution recording

ANR technology to enhance the storage reliability when the network is isconnected

Support cloud upgrade

Download PDF

Tech Specs

Details

Video

FAQ

Model	NVR3108-V3-IQ
Decoding
Decoding Format	Ultra 265,H.265,H.264
Decoding Capability	Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x1080P@30



DATASHEET


Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width

Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	80 Mbps

Outgoing Bandwidth	80 Mbps

Remote Users	128
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser(Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	8-ch
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

RCA Audio Output	1-ch
Liveview Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10


Two-way Audio
Two-way Audio	1-ch,RCA(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Num of Concurrent Playback	16-ch

DATASHEET


Smart
VCA Detection by IPC	Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD),People Counting (People Flow Counting, Crowd Density
	Monitoring), Traffic Monitoring
Smart by NVR	Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Smart by IPC	All channels (up to 8 images/s in total)Face Detection,Face Comparison,Vehicle Detection,SIP,UMD,Traffic Monitoring

Search by Image	Support
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

SIP by NVR	2-ch
UMD by NVR	4-ch
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin
	America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish,
	Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA Interfaces
Capacity	Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)

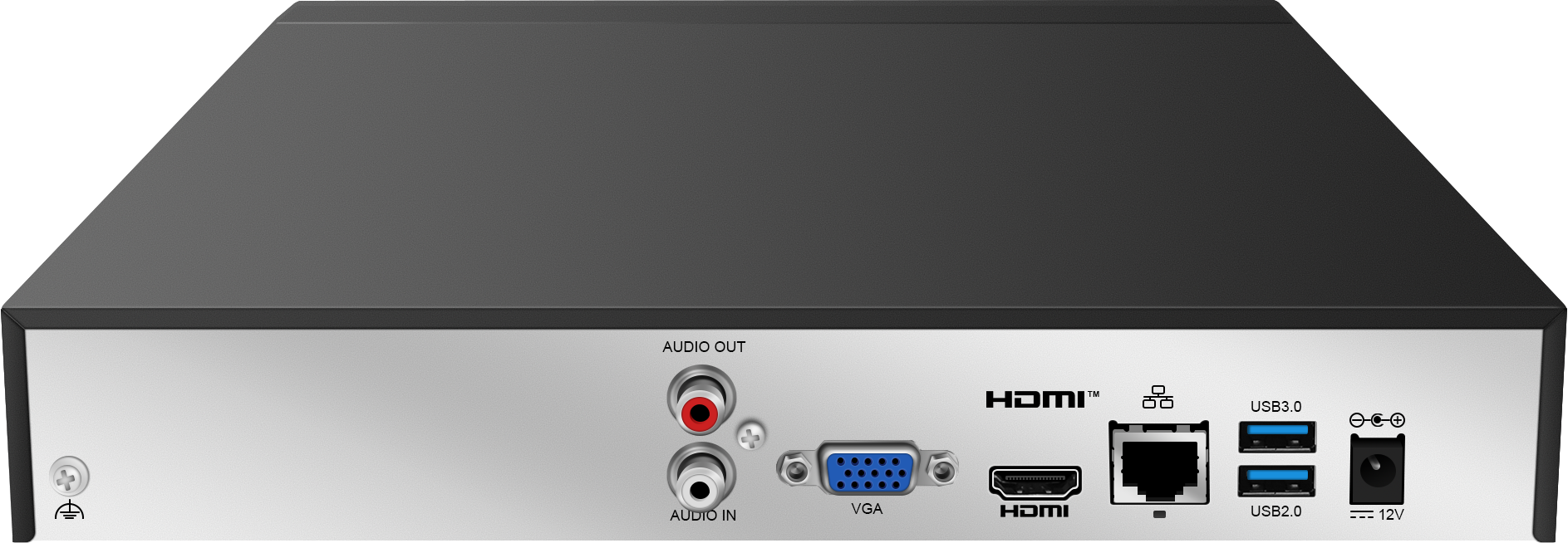

External Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
DATASHEET


Power Supply	DC 12 V/2 A
Power Switch	N/A
Working Environment
Working	-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)

Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 12W

Dimensions
Weight (without HDD)	≤ 2Kg (4.4lb)

Height	1U
Dimensions	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
FCC	Part15 Subpart B
