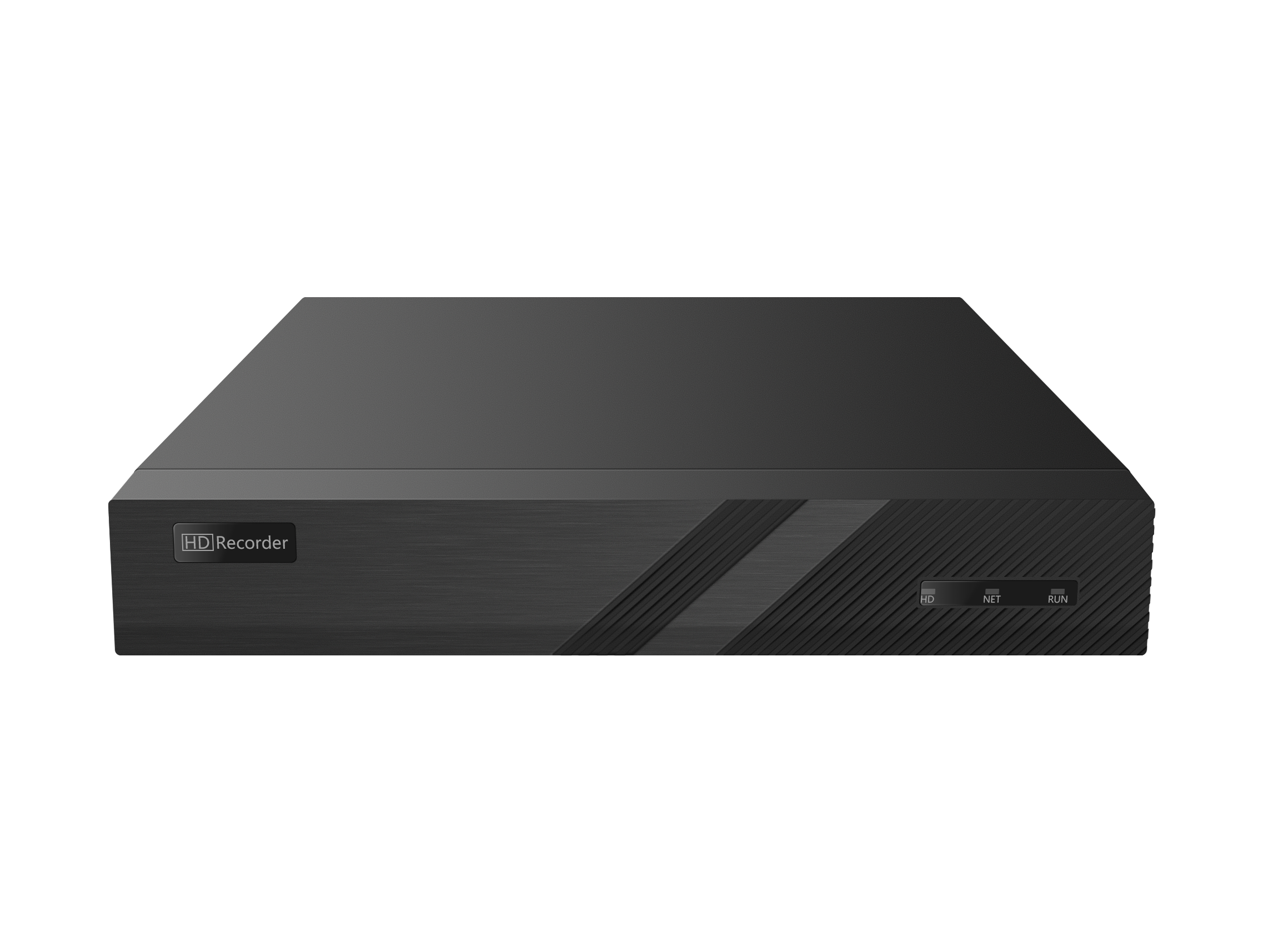

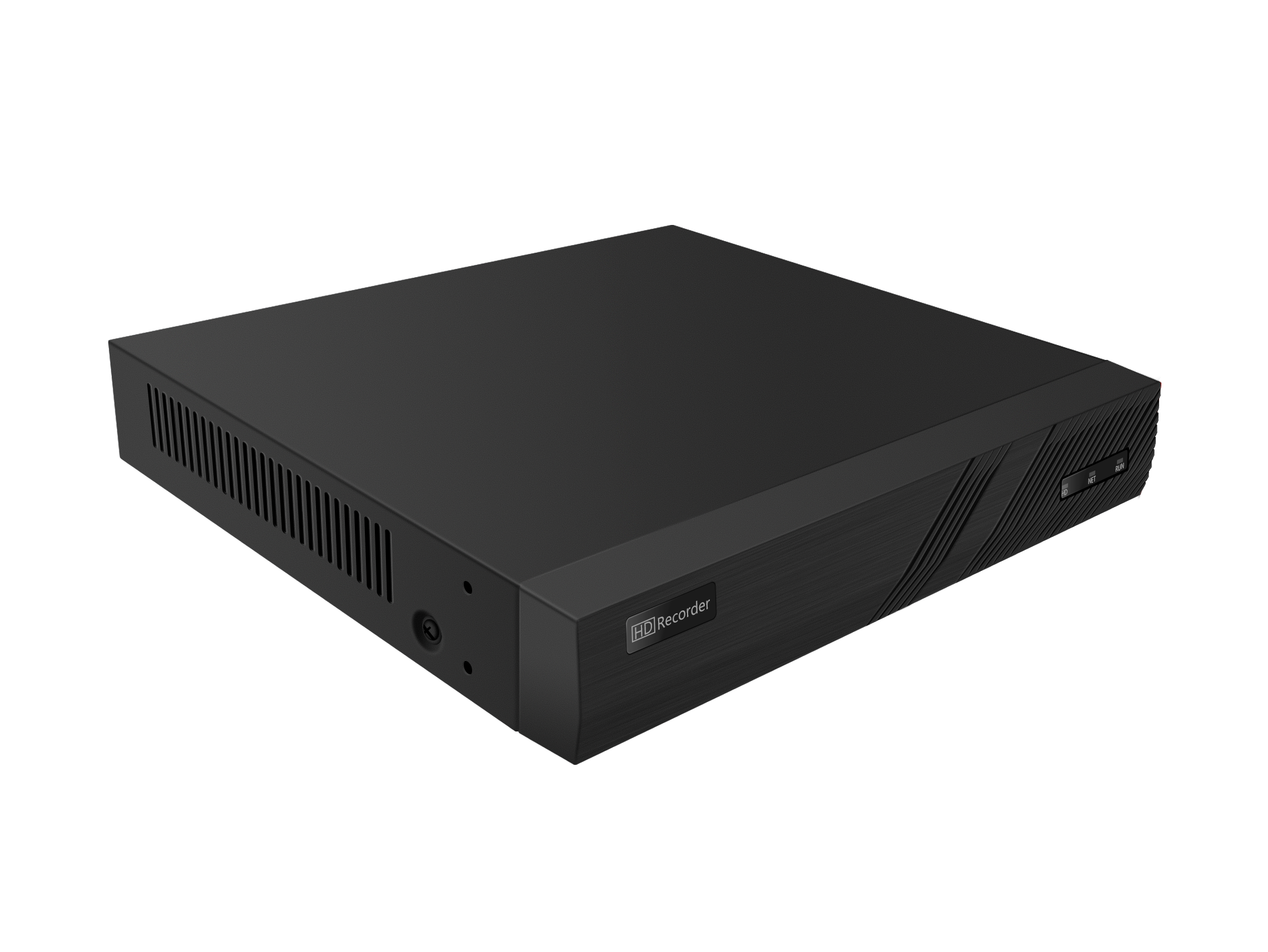

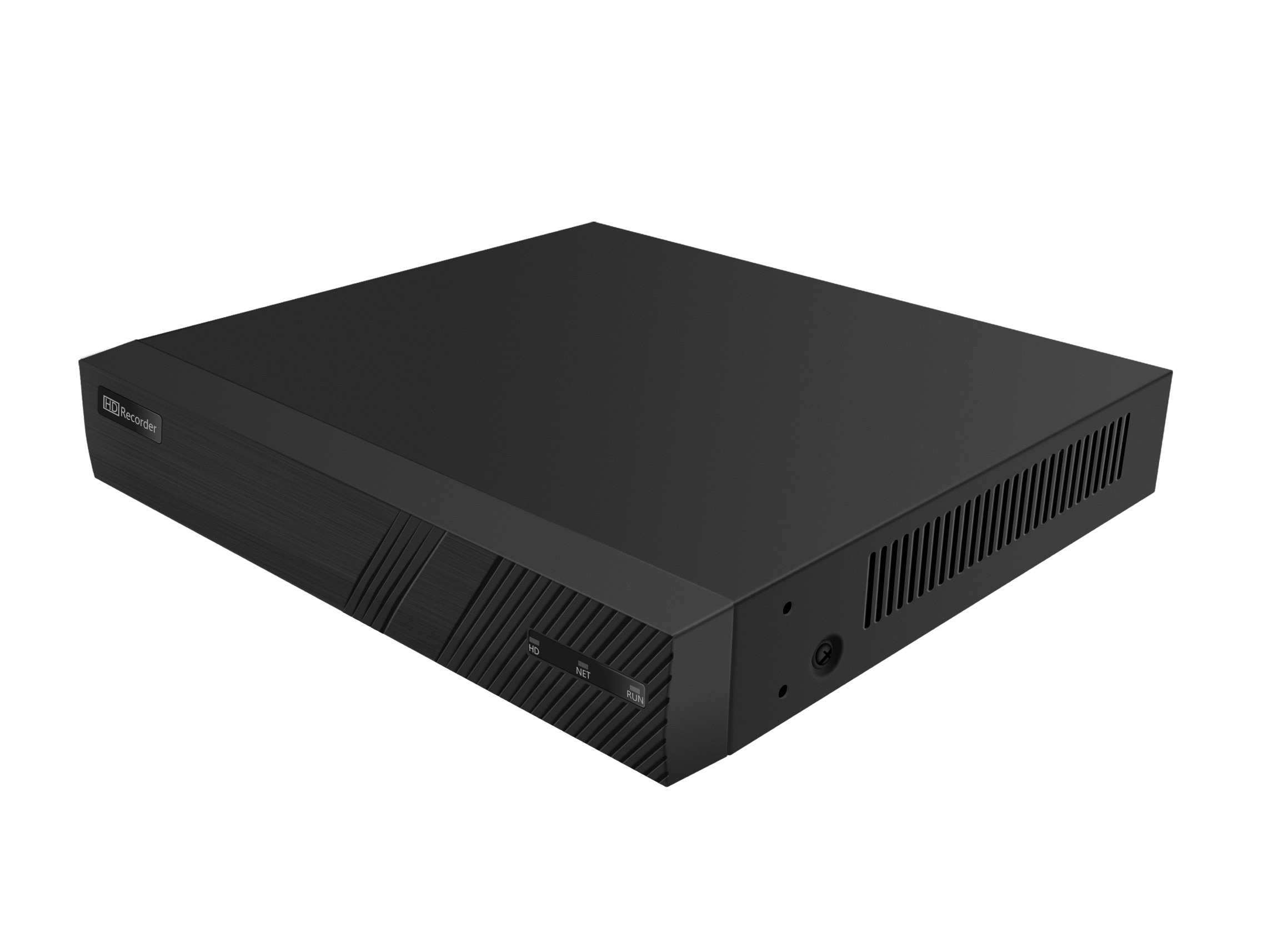

6MP 8CH 1 SATA PoE NVR With Deep Search Network and Smart Playback Plug & Play Video Recorder

Support Ultra 265/H.265/H.264 video formats

4/8-channel input

Plug & Play with 4/8 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

Support 1-ch HDMI, 1-ch VGA

HDMI and VGA simultaneous output

Up to 6MP resolution recording

Support cloud upgrade

Download PDF

Tech Specs

Details

Video

FAQ

Model	NVR3104-P4-S3-ECO
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	64 Mbps
Outgoing Bandwidth	48 Mbps
Max Users Can Be Added	32
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	4ch
Video/Audio Output

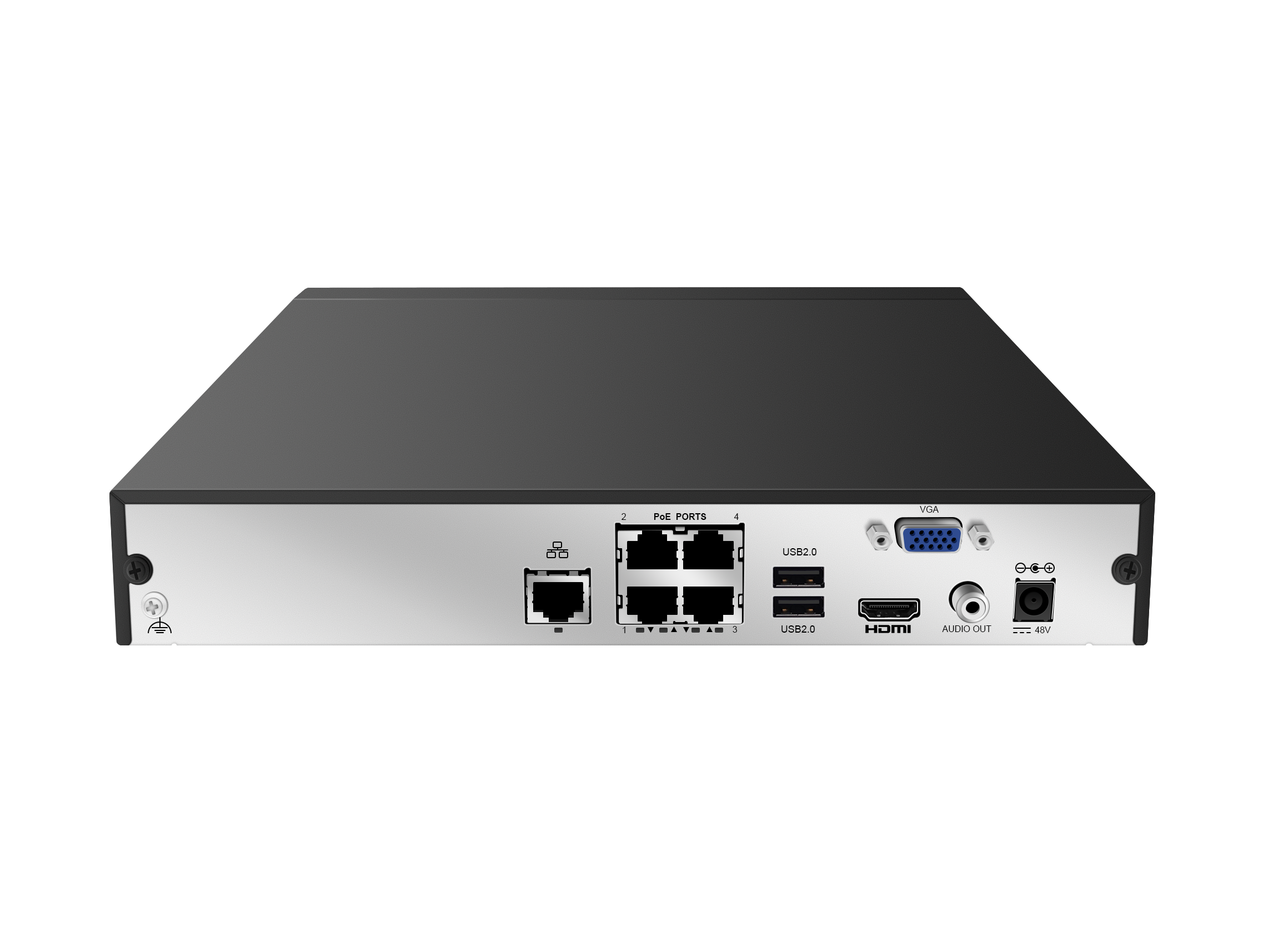

Video Output	Support 1ch HDMI, 1ch VGA, HDMI and VGA simultaneous output
HDMI Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
3.5mm Audio Output	1ch
Liveview Display	1月4日
Corridor Mode Screen	3月4日
Recording
Recording Resolution	6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	8ch
Synchronous Playback in Local	4ch
Smart
VCA Detection by IPC	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search	Behavior Search
Smart by IPC	Total 4ch (SIP and UMD supports channel 14, Alarm only, no image)
Alarm
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access
GUI Language
GUI Language	21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 6 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	1 RJ45 10 M/100 M selfadaptive Ethernet Interface
USB	Rear panel: 2 × USB2.0
Power Supply	DC 48 V/1 A
PoE
PoE Interface	4 RJ45 10 M/100 M selfadaptive Ethernet Interface
Max Power	Max 30 W for single port, Max 30 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (noncondensing)
Power Consumption (without HDD)	≤ 9W
Dimensions
Weight (without HDD)	≤ 1.0Kg (2.20lb)
Dimensions	190mm × 195mm × 42mm (7.5" ×7.7" ×1.6" )
Certification
Certification	CE; FCC; RoHS; WEEE
CE	EN 55032, EN 6100033, EN IEC 6100032, EN 55035
FCC	Part15 Subpart B

16CH POE NVR Network Video Recorder

Plug&Play with, Third-party IP cameras supported with OF conformance: Profile S, Profile G, Profile T

1. Can you provide OEM/ODM Service?

Sure, YCX has over 14-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
2. How about warranty?

All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
3. How long is the delivery time?

Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's required.Meanwhile, the tracking number will be provided once the goods were sent out.
4. What's the MOQ?

No MOQ required for sample order, at least one carton per model after sample order.
5. What's your main products?

YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard OVF protocol, which can compatible very well with Hik NVR.
6. Are you a factory or trading company?

YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 16 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.
